Silicon Controlled Rectifier (SCR) in ESD Protection

1. Introduction

Silicon Controlled Rectifiers (SCRs) are widely used for high-performance on-chip ESD protection. They are particularly suitable for high-speed, RF, low-capacitance, and compact ESD solutions across CMOS, SOI, and FinFET technologies.

SCR structures can conduct very high ESD currents if properly triggered and biased.

2. SCR Physical Structure

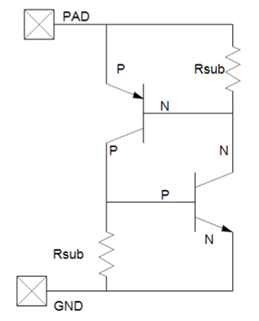

An SCR consists of a 4-layer PNPN structure formed by parasitic PNP and NPN bipolar transistors.

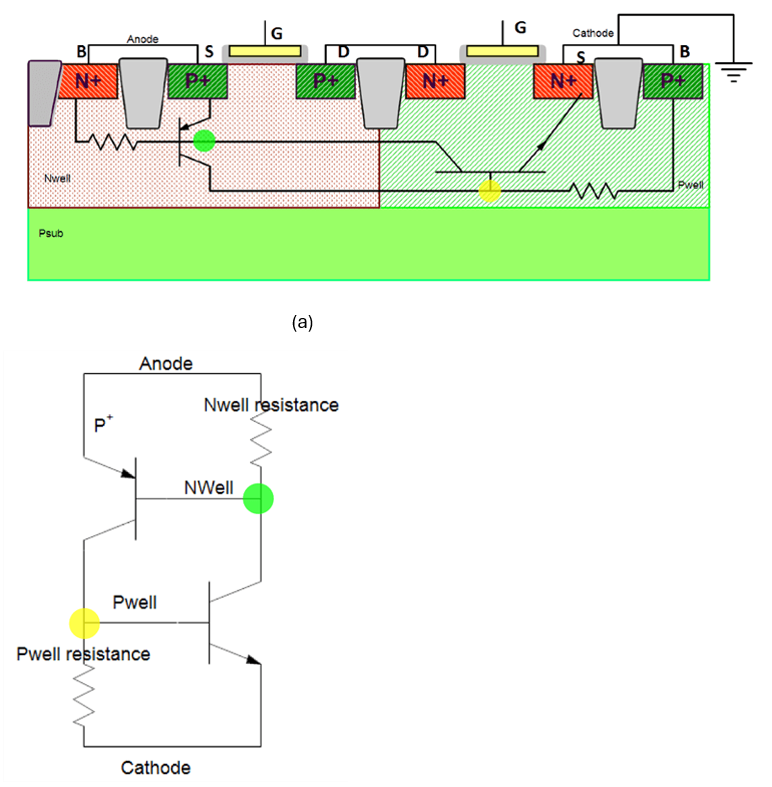

In CMOS, the SCR is inherently present between the PMOS and NMOS wells.

PNP transistor
NPN transistor
Coupled through well resistances
Forms regenerative feedback loop

3. Operating Principle

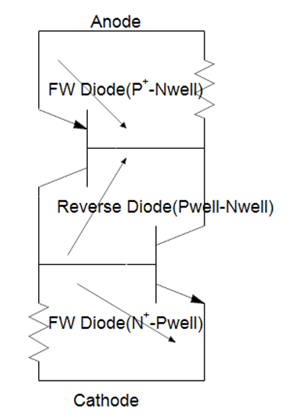

Under positive anode-to-cathode bias:

Forward diode
Reverse well-well junction
Forward diode

When the well junction undergoes avalanche breakdown, base currents are generated in both parasitic bipolar transistors.

If βPNP × βNPN > 1, regenerative feedback occurs and the SCR turns fully on.

4. Snapback Behavior

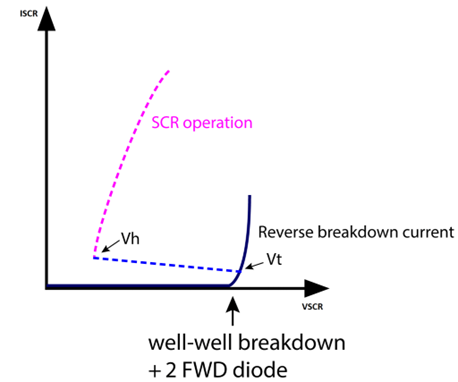

Unlike simple avalanche devices, SCRs exhibit strong snapback behavior.

Trigger Voltage (Vt1)
Holding Voltage (Vh)
Very low On-Resistance
High Current Capability

Once triggered, the voltage collapses while current increases rapidly.

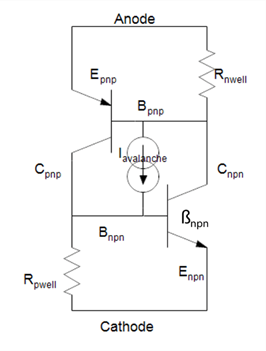

5. Current Capability

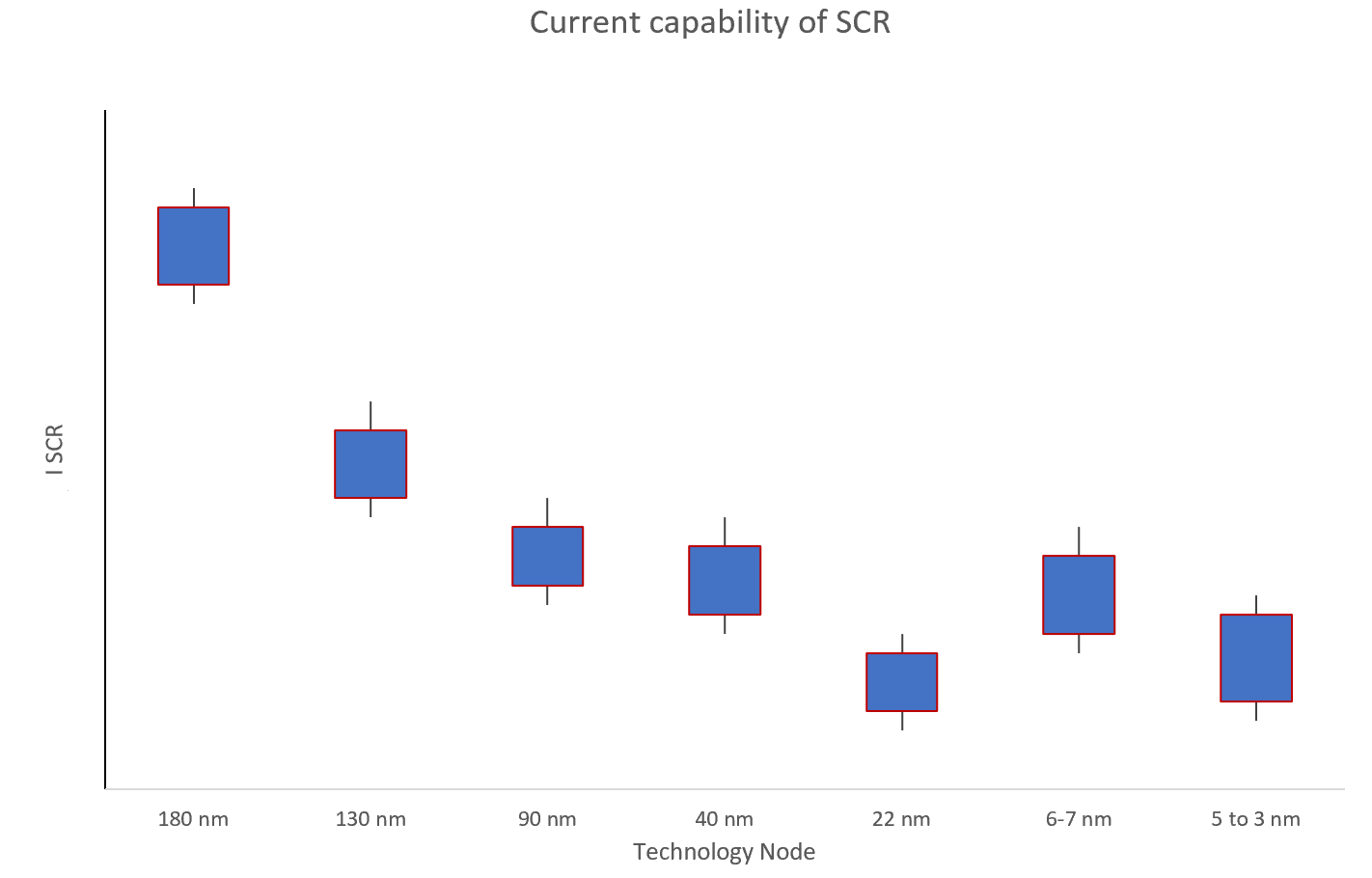

SCRs provide significantly higher ESD robustness compared to standard MOS-based protection.

Protection Type	Current Capability	Area Efficiency
NMOS Snapback	Moderate	Medium
SCR	Very High	High

6. Design Considerations

Trigger control (avoid premature latch)
Holding voltage optimization
Parasitic inductance minimization
Thermal stability
Leakage control

Proper SCR design ensures strong ESD robustness while avoiding latch-up during normal operation.

7. Application Domains

High-speed digital interfaces
RF systems
SOI and FinFET technologies
Low-capacitance I/O protection
